440 Stainless Steel Deep Groove Ball Bearings 16000 Series
  1. Thumbnail
  2. Thumbnail
  3. Thumbnail

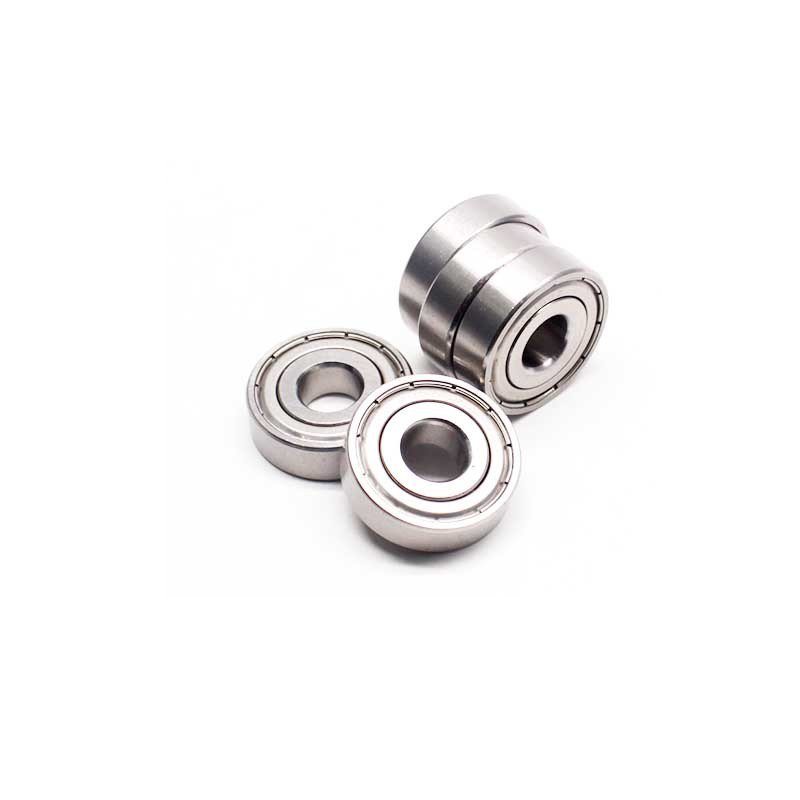

440 Stainless Steel Deep Groove Ball Bearings 16000 Series

Material 440 Stainless Steel
Bearing Type Deep Groove Ball Bearing
Inner Diameter (ID) 10mm - 130mm (depending on model)
Outer Diameter (OD) 28mm - 200mm (depending on model)
Width (W) 8mm - 22mm (depending on model)
Load Rating High radial and axial load capacity
Friction Coefficient Low friction for smooth rotation
Temperature Range -20°C to +120°C
Lubrication Type Pre-lubricated or greased (depending on model)

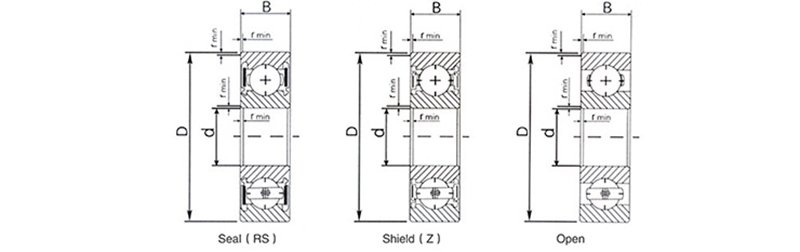

Seals Open, shielded, or sealed options

Send Inquiry Live Chat
  • Product Details
  • Why Choose Us
  • FAQs

440 Stainless Steel Deep Groove Ball Bearings from the 16000 Series are high-quality, precision-engineered bearings designed to handle radial and axial loads in both directions. Made from 440 stainless steel, these bearings offer exceptional corrosion resistance, durability, and performance in a wide range of industrial and mechanical applications. The 16000 Series is particularly ideal for applications requiring smooth and reliable motion with minimal maintenance.



Bearing
Type		 Principal Dimensions Basic Load Limiting speed Weight
(kg)
d D B Cr Cor Grease Oil
mm N r/min
s16100 10 28 8 4620 1960 28000 34000 0.022
s16101 12 30 8 5070 2360 26000 32000 0.023
s16002 15 32 8 5590 2850 22000 28000 0.025
s16003 17 35 8 6050 3250 19000 24000 0.032
s16004 20 42 8 6890 4050 17000 20000 0.050
s16005 25 47 8 7610 4750 14000 17000 0.060
s16006 30 55 9 11200 7350 12000 15000 0.085
s16007 35 62 9 12400 8150 10000 13000 0.110
s16008 40 68 9 13300 9150 9500 12000 0.130
s16009 45 75 10 15600 10800 9000 11000 0.170
s16010 50 80 10 16300 11400 8500 10000 0.180
s16011 55 90 11 19500 14000 7500 9000 0.260
s16012 60 95 11 19900 15000 6700 8000 0.280
s16013 65 100 11 21200 16600 6300 7500 0.300
s16014 70 110 13 28100 25000 6000 7000 0.430
s16015 75 115 13 28600 27000 5600 6700 0.460
s16016 80 125 14 33200 31500 5300 6300 0.600
s16017 85 130 14 33800 33500 5000 6000 0.630
s16018 90 140 16 41600 39000 4800 5600 0.850
s16019 95 145 16 42300 41500 4500 5300 0.860
s16020 100 150 16 44200 44000 4300 5000 0.910
s16021 105 160 18 52000 51000 4000 4800 1.200
s16022 110 170 19 57200 57000 3800 4500 1.450
s16024 120 180 19 60500 64000 3400 4000 1.600
s16026 130 200 22 79300 81500 3200 3800 2.350



Key Features of 440 Stainless Steel Deep Groove Ball Bearings S16000 Series

  1. Corrosion Resistance
    • 440 Stainless Steel is highly resistant to rust and corrosion, making these bearings suitable for use in harsh environments, including food processing, marine, and chemical industries.
  2. High Precision and Durability
    • These bearings are designed for high-speed operations, providing low friction and smooth rotation, which enhances their lifespan and performance over time.
  3. Versatile Load Capacity
    • The deep groove design allows these bearings to handle both radial and axial loads, providing versatility in a variety of applications, from machinery to precision equipment.
  4. Low Friction and High Efficiency
    • The smooth raceways and precision ball design minimize friction, ensuring energy-efficient operation and reducing wear on components.
  5. Temperature Stability
    • The bearings are designed to operate effectively across a wide range of temperatures, making them suitable for both high and low-temperature applications.
  6. Standardized Sizes for Easy Replacement
    • The S16000 Series is available in a range of standardized sizes, making them easy to replace or upgrade in existing machinery without the need for custom designs.

Applications of 440 Stainless Steel Deep Groove Ball Bearings S16000 Series

  1. Automotive Industry
    • Ideal for use in vehicle engines, transmissions, and other automotive components that require durable and corrosion-resistant bearings for smooth performance.
  2. Food Processing
    • Suitable for use in food machinery, where corrosion resistance is crucial to meet hygiene standards and ensure safe, long-lasting operation.
  3. Industrial Equipment
    • Commonly used in conveyors, packaging machines, bombas, and other heavy-duty industrial equipment due to their ability to handle high loads and continuous operation.
  4. Marine Applications
    • Resistant to saltwater corrosion, making these bearings ideal for use in marine applications, such as boat engines and pumps.
  5. Electronics and Precision Instruments
    • Perfect for high-speed, low-noise applications in electronics, precision instruments, and robotics, where smooth motion and reliability are essential.
  6. Agriculture Equipment
    • Used in various agricultural machinery, providing smooth motion and reducing wear under harsh operational conditions.

1. Premium Quality Materials

We use top-grade ceramic materials like Zirconia (ZrO2) and Silicon Nitride (Si3N4) to ensure our bearings offer superior durability, wear resistance, and performance.

2. Tailored Solutions

Our team works closely with you to provide customized bearing solutions that perfectly meet the needs of your industry, whether in packaging, renewable energy, or other specialized fields.

3. Industry Expertise

With years of experience serving diverse industries, we understand the unique challenges of high-performance applications and consistently deliver reliable solutions.

4. Precision Engineering

Our ceramic bearings are manufactured with state-of-the-art technology to achieve unmatched precision and efficiency, ensuring smooth operation and extended lifespan.

5. Competitive Pricing

We combine high quality with cost-effective pricing, offering excellent value to our clients without compromising on performance.

6. Fast Delivery & Global Reach

Our streamlined logistics and global network ensure timely delivery, no matter where you are.

7. Exceptional Support

Our dedicated team is available to assist you every step of the way—from initial inquiry to after-sales service—ensuring a hassle-free experience.

1. What are ceramic bearings?

Ceramic bearings are bearings made from advanced ceramic materials such as Zirconia (ZrO2) or Silicon Nitride (Si3N4). They are known for their high strength, wear resistance, and ability to perform in extreme conditions.

2. What are the advantages of ceramic bearings over steel bearings?

Ceramic bearings offer several advantages, including:

  • Higher Durability: Resistant to wear, corrosion, and high temperatures.
  • Lighter Weight: Up to 40% lighter than steel bearings.
  • Non-Magnetic & Electrically Insulating: Ideal for sensitive applications.
  • Low Friction: Reduces energy loss and heat generation.

3. In which industries are ceramic bearings commonly used?

Ceramic bearings are widely used in:

  • Packaging equipment
  • Renewable energy (e.g., wind turbines)
  • Aerospace and automotive
  • Medical devices
  • Chemical processing
  • High-precision tools

4. Can ceramic bearings handle high temperatures?

Yes, ceramic bearings are highly resistant to heat and can operate in temperatures exceeding 1,000°C, depending on the material used.

5. Are ceramic bearings suitable for corrosive environments?

Absolutely! Ceramic bearings are non-reactive to most chemicals, making them ideal for use in highly corrosive environments.

6. What is the lifespan of ceramic bearings?

Ceramic bearings typically last much longer than steel bearings due to their wear resistance and durability. However, the exact lifespan depends on the operating conditions and maintenance practices.

7. How do I maintain ceramic bearings?

Ceramic bearings require minimal maintenance, but to ensure longevity:

  • Use the correct lubrication when necessary.
  • Keep them clean and free from contaminants.
  • Follow proper installation procedures.

8. Do you provide customized ceramic bearings?

Yes, we offer tailored ceramic bearing solutions to meet your specific application requirements. Contact us to discuss your needs.

9. What sizes and types of ceramic bearings do you offer?

We supply a wide range of sizes and configurations, including ball bearings, roller bearings, and hybrid bearings. Check our product catalog or contact us for more details.

10. How can I place an order or request a quote?

Simply visit our Contáctenos page, fill out the inquiry form, or reach out to us directly via email or phone. Our team will respond promptly with the information you need.
